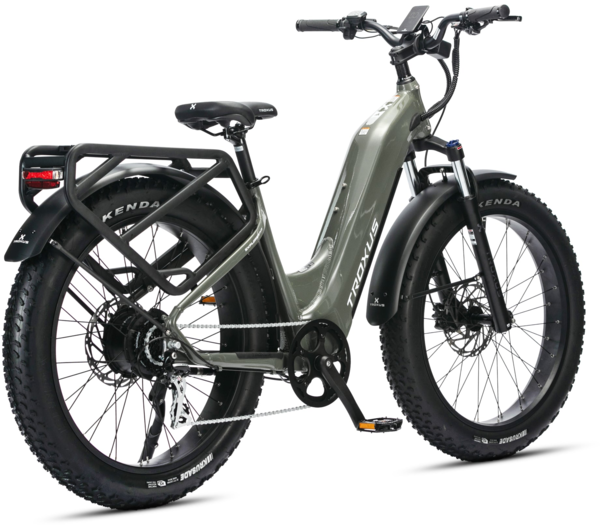

Troxus Explorer Plus Step Thru E-Bike - MIK Version
This item is currently not available.
Details
The upgraded 2025 Explorer Plus remains the ultimate daily commuter, and weekend adventure companion. With its trendy new colors and new semi-integrated MIK-compatible rear rack for a clean look, the eXplorer Plus retains its best features with a color Bluetooth-compatible display that allows easy access to all your ride data, and the ability to select between cadence or torque sensors to tune your ride experience. The 80-Lux lighting system includes turn signals and a hazard flashing mode at the rear light, for enhanced saftey and visibility.
| Frame Size | Small (16.5″) | Medium (18.0″) |
|---|---|---|
| Seat Tube Length | 419 mm | 457 mm |
| Seat Tube Angle | 71.5° | 71° |
| Head Tube Length | 145 mm | 145 mm |
| Head Tube Angle | 68° | 68° |
| Effective Top Tube Length | 609 mm | 625 mm |
| Bottom Bracket Height | 305 mm | 305 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Chainstay Length | 490 mm | 490 mm |
| Fork Offset | 46 mm | 46 mm |
| Wheelbase | 1 163 mm | 1 171 mm |
| Frame Reach | 383 mm | 392 mm |
| Frame Stack | 677 mm | 677 mm |
| Fork Travel | 90 mm | 90 mm |
| Fork Height | 525 mm | 525 mm |
| Size | Recommended Height |
|---|---|
| S | 5’0″ – 5’5″ |
| M | 5’5″ – 5’10″ |
Specs
| Frame | 6061-T6 Aluminum Step-Thru Frame |
|---|---|
| Fork | Front Suspension Fork, 90mm Travel |
| Rims | Alloy Single Wall Front / Double Wall Rear, 36H, 26"x4.0", w/ Eyelets |
| Hubs |
Front: Alloy, 36H, 135mm, 3/8" Axle Rear: Bafang® 48V 750W/ 28 MPH. 86Nm |
| Spokes | Stainless 13G. Front / 12G. Rear |
| Tires | KENDA® 26"x4.0", w/ Anti-Puncture K-Shield |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm |
| Shifters | Shimano® 8-Speed |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette/Freewheel | Shimano® 8-Speed, 12-32T |
| Chain | KMC® 1/2"x3/32" |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 203mm / 203mm |
| Handlebars | Zoom® Alloy 31.8mmx700mm Wide |
| Tape/Grips | Ergonomic Comfort |
| Stem | Zoom® Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise |
| Headset | Threadless, Locking Internal 1-1/8" |
| Seatpost | Zoom® Alloy, 30.9x350mm, Adjustable |
| Saddle | Troxus Comfort |
| Pedals | 9/16" Alloy Platform |
| Accessories & Extras | 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
| Motor | Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
| Battery | UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells |
| Controller/Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
| Charger | 3A / 100-240V Input / 54.6V Output |
* Subject to change without notice.
